Wafer dicing — also known as die singulation — is a vital part of semiconductor manufacturing. It allows for the separation of processed wafers into individual chips used in microprocessors, sensors, memory modules, and other electronic components. At Syagrus Systems, we offer precision wafer dicing services that improve chip yield, reduce defects, and meet tight dimensional tolerances for industries like automotive, medical, and consumer electronics.
This wafer dicing process guide is designed for engineers, procurement specialists, and semiconductor manufacturers looking to understand the process and how to choose the correct dicing method. Syagrus Systems is a provider of high-precision wafer dicing services for industries requiring advanced semiconductor components. Contact us for more information on our innovative die singulation and wafer dicing process for the semiconductor manufacturing industry.
What is Wafer Dicing?
Wafer dicing (die singulation) is the process of cutting a semiconductor wafer into individual die (chips), which are then used in electronic devices. This critical step in semiconductor manufacturing uses precision tools to slice the wafer along pre-determined lines, ensuring that each chip meets exacting quality assurance and dimensional standards.
The process is essential for maximizing yield and preparing the chips for subsequent packaging and integration into electronic devices. Die singulation is typically performed at the back end of semiconductor fabrication after wafers have undergone photolithography and etching.
Why is Wafer Dicing Important in Semiconductor Manufacturing?
Wafer dicing is a foundational step in semiconductor fabrication that determines the quality, reliability, and efficiency of electronic components. Key reasons why wafer dicing is critical for the semiconductor manufacturing industry include:
- Enables Mass Production of Microelectronics
- Allows semiconductor manufacturers to process and separate thousands of individual chips from a single wafer.
- Supports high-volume production to meet the increasing global demand for smaller, more powerful electronics.
- Ensures Precision and Accuracy
- Dicing must be highly precise to prevent damage to adjacent chips and maximize yield.
- Modern dicing technologies minimize chipping, cracks, and mechanical stress.
- Supports Various Semiconductor Applications
- Essential for producing microprocessors, memory modules, image sensors, MEMS devices, power semiconductors, and optoelectronics.
- Critical for consumer electronics, automotive technology, telecommunications, aerospace, and medical devices.
- Reduces Waste and Maximize Yield
- Efficient wafer dicing techniques help semiconductor manufacturers maximize usable chips per wafer.
- Minimizes material loss and reduces costs associated with the defective die.
Wafer Dicing, Wafer Coring & Wafer Resizing: What are the Differences?
The table below provides the significant differences between wafer dicing, coring, and resizing.
|
|
Wafer Dicing |
Wafer Coring |
Wafer Resizing |
|
Explanation of Each Process: |
Process of cutting an entire wafer into individual dies using precision techniques like blade, laser, or plasma dicing. Used For:
|
Extracts circular sections from a wafer, often for research or testing.
Used For:
|
Reduces a wafer’s diameter to fit processing equipment or application requirements. Used For:
|
The Wafer Dicing Process
The wafer dicing process includes multiple stages designed to ensure precision and prevent damage. These stages include:Wafer Preparation
- Cleaning & Inspection - Before dicing, the wafer is thoroughly cleaned to remove contaminants and inspected for any defects, ensuring that only high-quality chips are produced.
- Mounting - The wafer is securely bonded to a dicing tape or mounted onto a support film on a dicing frame, stabilizing the wafer during cutting and helping to maintain its integrity.
- Scribing - In some processes, a scribing tool creates shallow lines along the intended cut lines. These scribe lines serve as guides for the subsequent cutting process and can help control the propagation of cracks.
- Laser Scribing - Alternatively, a laser can be used to precisely mark the wafer surface without physical contact, ensuring minimal mechanical stress.
- Die Separation - After the dicing process, the individual dies remain attached to the dicing tape or film. Automated equipment then separates each die from the tape.
- Cleaning - The separated dies are cleaned to remove any debris, adhesive residue, or particles that might have been generated during cutting. This step is crucial to ensure that no contaminants compromise the subsequent assembly process.
- Inspection & Sorting - Finally, each die is inspected—often using automated optical or electrical testing—to verify that it meets the required quality and dimensional standards. Dies that pass inspection proceed to packaging, while defective ones are discarded or reworked.
Scribing & Pre-Cutting
- Scribing - In some processes, a scribing tool creates shallow lines along the intended cut lines. These scribe lines serve as guides for the subsequent cutting process and can help control the propagation of cracks.
- Laser Scribing - Alternatively, a laser can be used to precisely mark the wafer surface without physical contact, ensuring minimal mechanical stress.
Post Wafer Dicing
- Die Separation - After the dicing process, the individual dies remain attached to the dicing tape or film. Automated equipment then separates each die from the tape.
- Cleaning - The separated dies are cleaned to remove any debris, adhesive residue, or particles that might have been generated during cutting. This step is crucial to ensure that no contaminants compromise the subsequent assembly process.
- Inspection & Sorting - Finally, each die is inspected—often using automated optical or electrical testing—to verify that it meets the required quality and dimensional standards. Dies that pass inspection proceed to packaging, while defective ones are discarded or reworked.

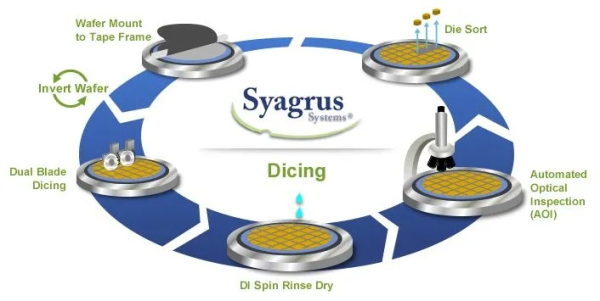

The below graphic provides a visual explanation regarding the flow of the dicing process:
Wafer Dicing Process Options
Mechanical Sawing
A high-speed diamond-coated dicing saw is commonly used to cut through the wafer along the scribed lines. The saw blade is carefully controlled to remove material with minimal damage to the adjacent dies. This method is best for standard silicon wafers and is highly cost-effective, offering moderate precision.
Laser Dicing
For more delicate or thinner wafers, a high-powered laser can be used. The laser beam precisely ablates or vaporizes the material along the cutting lines, reducing mechanical stress and minimizing chipping. This method is ideal for fragile wafers and smaller chips, offering high precision.
Plasma Dicing
In some cases, a plasma dicing technique is employed. This method uses a chemical plasma to etch the wafer along the desired pattern, offering ultra-precise cuts with very little mechanical force. This method is best for very thin or delicate wafers, reducing edge damage and contamination.
Wafer Dicing Tolerances
The tolerance of wafer dicing refers to the allowable variation in cut dimensions. Typical range: +/- 0.001 inches (0.025mm) to +/- 5 microns, depending on equipment and application. High-precision dicing machines can achieve +/- 1-micron tolerances, crucial for advanced applications. Tight tolerances ensure precise chip dimensions, reducing defects and improving performance.
Factors to Consider When Choosing a Wafer Dicing Technique
Several considerations should be weighed prior to choosing a specific wafer processing technique. The below table explains some of these factors:
|
Consideration Factors |
Explanation |
|
Material Properties |
Syagrus specializes in silicon wafer dicing, but different materials (GaAs, SiC, glass) may require different techniques. |
|
Chip Size & Geometry |
Smaller and more complex die shapes demand higher precision. |
|
Precision & Accuracy Requirements |
Determines if blade, laser, or plasma is best suited for the application. |
|
Production Cost & Efficiency |
Higher precision often comes at a cost—choosing the right balance is crucial. |
|
Environmental & Waste Considerations |
Some techniques generate more heat, dust, or waste, requiring mitigation strategies. |
Common Wafer Dicing Challenges & Mitigation Strategies
Wafer dicing, sorting, and processing can be challenging. Here is a list of potential problems that can arise and how to overcome them:
- Die Chipping & Breakage – Use appropriate dicing methods to minimize edge fractures.
- Contamination & Cleanliness – Perform cutting in ISO-controlled cleanroom environments.
- Precision & Accuracy Issues – Utilize automated optical inspection and high-tolerance equipment
Wafer Dicing Industries & Applications
- Consumer Electronics – Smartphones, laptops, and microprocessors.
- Automotive – Sensors, ADAS, and power management ICs.
- RFID Components- small, compact electronic devices used to wirelessly store, transmit, or receive information across devices.
- OEMs– OEM products for various industries
- Military & Aerospace – Highly reliable chips for avionics.
- Medical Devices – Miniaturized chips for diagnostics and implantable devices.
Why Choose Syagrus Systems for Your Wafer Dicing Needs?
At Syagrus Systems, we utilize double pass cutting to yield superior dies with improved accuracy. Additionally, all dies are subject to magnification die visual inspection to ensure your wafer is at peak optimization. Advantages include:
- Precision & Low-K Dielectric Expertise – Specialized handling to reduce damage during singulation.
- Advanced Dicing Technologies – Custom blade and laser options tailored to your specs.
- Minimal Chipping & Damage Control – Optimized processes ensure high-yield results.
- Die Size & Thickness Flexibility – Handling ultra-thin wafers and custom die sizes.
- Process Customization – Tailored dicing solutions for each client’s needs.
- Post-Dicing Services – Wafer thinning, die sorting, and pick-and-place for a seamless supply chain.
- Industry Focus – Trusted by automotive, medical, and consumer electronics sectors.
